Safety Beam Sensor

This revolving door presence safety curtain sensor, can accurately detect the moving or fixed human body and objects, avoid all kinds of rotating automatic sensing door or swing door from colliding with body or objects, to ensure the safety of people and equipment, widely used in automatic revolving door safety presence occasions.

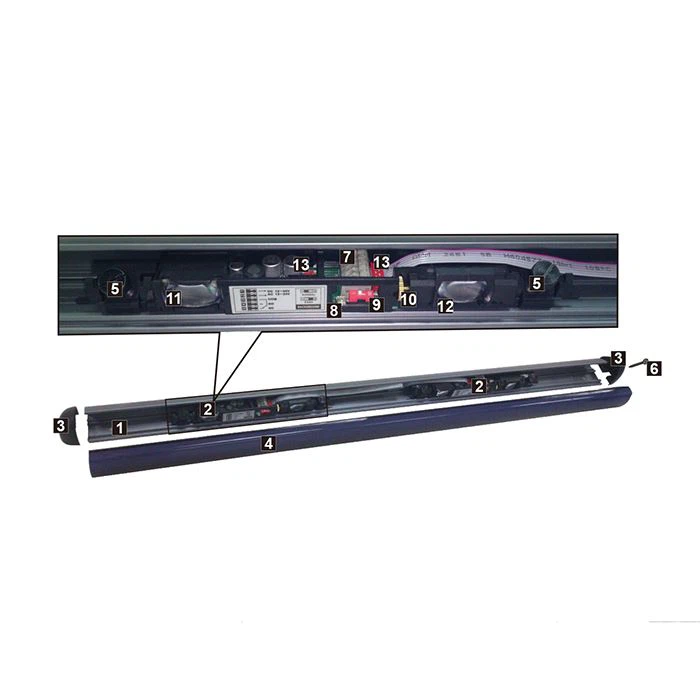

Product Overview

1 Aluminum housing

2 Sensor*2

3 End cover*2

4 Front cover(filter glass)

5 Mounting brackets*2

6 Cross-recessed screws*2

7 Connection terminal

8 Indicator light

9 Background set switch

10 Scanned area regulating wheel

11 Transmit cabin

12 Receive cabin

13 Wire interface*2

NOTE: The left or right end cover may need to remove according to its application. Loosen the screws to remove end cover, then front cover can be removed.

Characteristics

1, It can detect moving or standing people or objects, keep safety when people or equipment enter from rotation door or automatic swing door.

2, Ingenious structure, simple but modern appearance. And very easy to install.

Application

Four size can be available:

620x31x20mm

750×31×20mm

900×31×20mm

1200×31×20mm

Installation

1, Remove the screw. Then take the bracket holder and sensor out from aluminum case carefully.

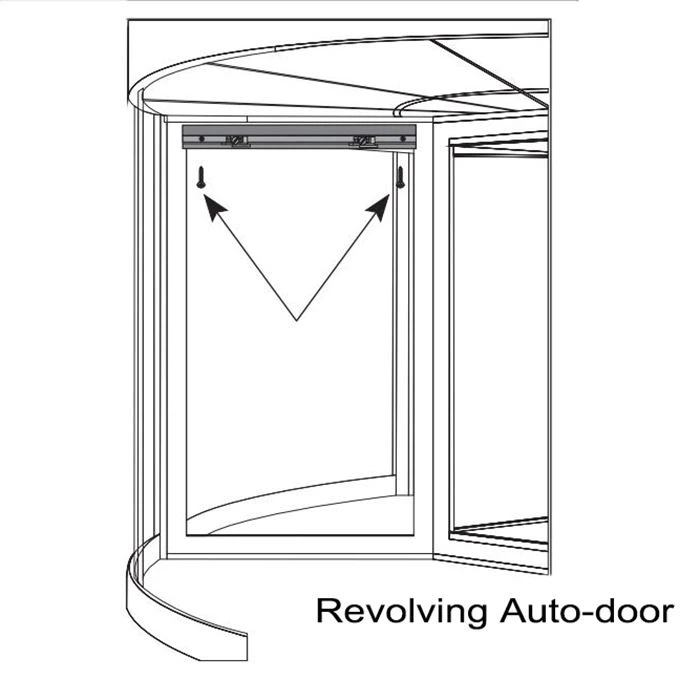

2, Install the aluminum case on the door leaf.

3, The screws must be removed before connect the mounting brackets to main case. Put the sensor into case and tighten the 2 mounting brackets to sensor.

4, Start the sensor after finish all installation. Use a piece of paper(A4 or 8.5*11 inch) or

your hand to test the detection area.(The LED light will from blue turn to red.)

5, Slide the sensor to adjust the detection area (Mounting bracket should be opened).

6, After finish all settings, lock the screws in mounting bracket tightly to stabilize the sensor.

7, After finishing the installation of sensor, put the front cover onto aluminum case. Close the front cover and use the screw to fasten.
