Function Selector

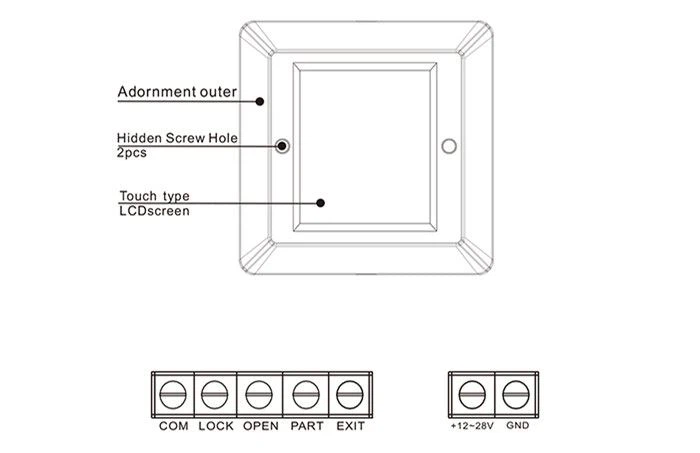

As for the automatic door, the operating mode setting needs to be controlled by a switch. M-246 LCD touch auto gate function selector, switch settings with the button, it is convenient to control the automatic door with the five functions of automatic, unidirectional, half-open, locked and normally open.

Features

1, Specially equipped with automatic door, Switching setting by the keys, convenient to control the automatic door of Automatic, Unidirectional, Half open, Full lock, Full open five functions.

2, TFT 2.8 inch LCD display, touch operation, function switching is intuitive and simple.

3, It can be switched password mode or no password mode.

4, Universal 86 model switch panel design, convenient to install in various occasions.

5, Delicate and pretty appearance, and it is helpful to enhance the overall quality of the automatic door machine.

Function setting

1, Device power-on display Loading... 3 seconds countdown.

2, After startup, entering the standby mode, display the company logo, and will enter the screen saver page if no operation.

3, In the standby page, casually touch screen can show the current function mode. If chosen the password operation, then open the password input window; If chosen the no password operation, will enter function switching page.

4, Push the correct password to enter the mode selection page. (If the password is incorrect, press "*" key to remove one bit forward.)

5, Enter the function selection page of each mode after selection the mode. (NOTE: When entering the menu next time after selecting the mode, can enter the function switching page directly. If need to switch the mode, it must be power-on again.)

6, In the function switching page, touch click the function you want to switching, in the next page, If confirm to select this mode, please press "OK", return the last page, please press "CANCEL". The controller will issue the resistance value corresponding to the function. At the same time, the screen will display the confirmed function. After 2 seconds, it will return to the standby page.

7, Resistance value level: AUTO: ∞ OPEN:2.2kΩ EXIT:1kΩ PART: 3.6kΩ LOCK: 470Ω

Technical parameters
