Safety Beam Sensor

This product is Model 218D, single beam dual beam infrared safety sensor, it will be installed on both sides of the automatic door as an anti-pinch function. Widely used in automatic door as safety presence auxiliary function, can accurately and reliably make the detection. Through the detection of people or things to provide door opening signal to automatic door , so as to avoid the hidden dangers.

Product Specifications

Features

1, Adopt the color corresponding plug-in socket, simple wiring, convenient and accurate.

2, Single beam, double beam option, detection distance range can be adjusted flexibly.

3, It is composed of a pair of transmitting and receiving light eye head and main controller, far transmitting distance, easy to install and wiring.

4, Special high-precision calculating mode, and with sun filter factor, greatly improved the anti-inference performance of the system.

5, Equipped with short connection fault alarm function for receiving eye head.

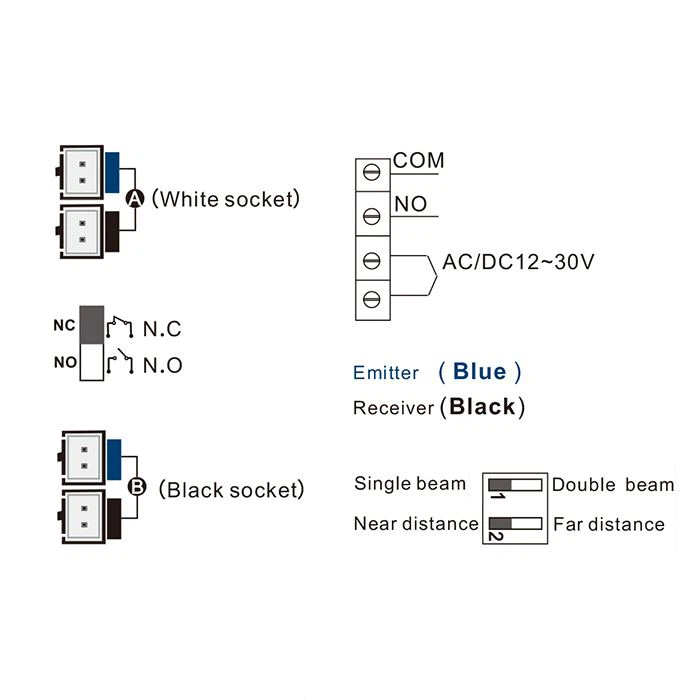

Wiring Diagram

This Safety Beam Sensor with 2 modes for available: Single beam sensor and Dual beam sensors, can be choose according to your requirements. And when installation, Emission eyes is equipped with Blue Cable, Receiver eyes is equipped with Black Cable.

NOTE: Safety light eye mounting bracket (CNB-218G), specially used in safety light eye head of CNB-218E,218D,218H for fixing bracket, easy to be installed in all kinds of door frames and columns.

Application

Our products have rich models and styles, and this single beam dual beam infrared safety sensor is mainly used in automatic door system, suitable for various occasions, as pedestrian safety protection function. Such as shopping mall, supermarket, office building, hospital gate, school, airport, etc.
