M-204F Passive Infrared PIR Motion Sensor
Products Description
Passive Infrared PIR motion sensor for automatic door access opening. This specialized sensor uses passive infrared (PIR) technology to detect the movement and activate the automatic door. In the sensing zone, as soon as an object or person is moving towards the door, the signal is detected by the sensors, which will indicate the doors to open immediately.

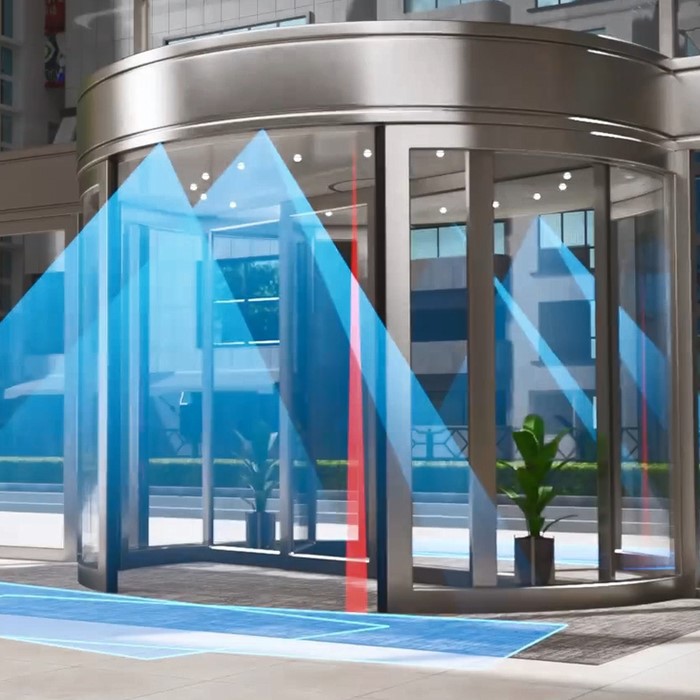

It's used for various automatic doors with activation function, such as sliding door. revolving doors, etc. Widely applied in commercial, industrial and automation fields with high demand. It's a great solutions of activation sensor on street front doors with big passenger flows. Precisely adjusted sensing zone can avoid unnecessary detection on irrelevant passing flow.
Key Features
✅ Advanced PIR Technology – Accurately detects body heat and movement, reducing false triggers.
✅ Adjustable Sensitivity & Delay Time – Customize detection range and response duration.
✅ Precisely sensing range – Ensures reliable motion detection in various environments.
✅ Easy Installation – Surface mounted or hidden mounted options available.
✅ Versatile use – Ideal for homes, stores, offices, and commercial spaces.
Overview & Diagram
① Zoom screws
② Zoom scale
③ LED indicator: Sensor activation in Red LED; Sensor standby state in Green LED
④ Swivel bracket
⑤ Sensitivity adjustment
⑥ Optical lens cover
⑦ Cover/fresnel lens
Technical Specifications
|
Operating voltage:
|
AC/DC 12~30(-0%+15%) | Lowest detection speed: | 0.1m/s | |
| Static current: | 6mA(12V power) | Output holding time: | 0.5 seconds | |
| Action current: | 18mA(DC 12V power) | Tilt adjust range: | 0°~6° | |
| Working temperature: | -40°C~60C | Dimension(Exposed installation): | 110(L)x40(W)x 49(H)mm | |
| Max installation height: | 3.5 meters | Dimension(Concealed installation): | 72(L)x 25(W)x 63(H)mm | |
| Max detection area: | 3x1.5 meters | Total Weight: | 135G |
Installation
This sensors support both surface and hidden installations.
Hidden installation: After hidden installation and fixation, if there is a deviation in the sensor range, the sensor body can be rotated moderately (about ±6°) to make the system work normally.
Surface installation: Fixed the mounting bracket first, and rotate the sensor body.
Sensitivity adjustment:
Sensitivity adjustment: Adjust clockwise, the sensitivity becomes higher, adjust counterclockwise, the sensitivity becomes lower.
