Product Introduction

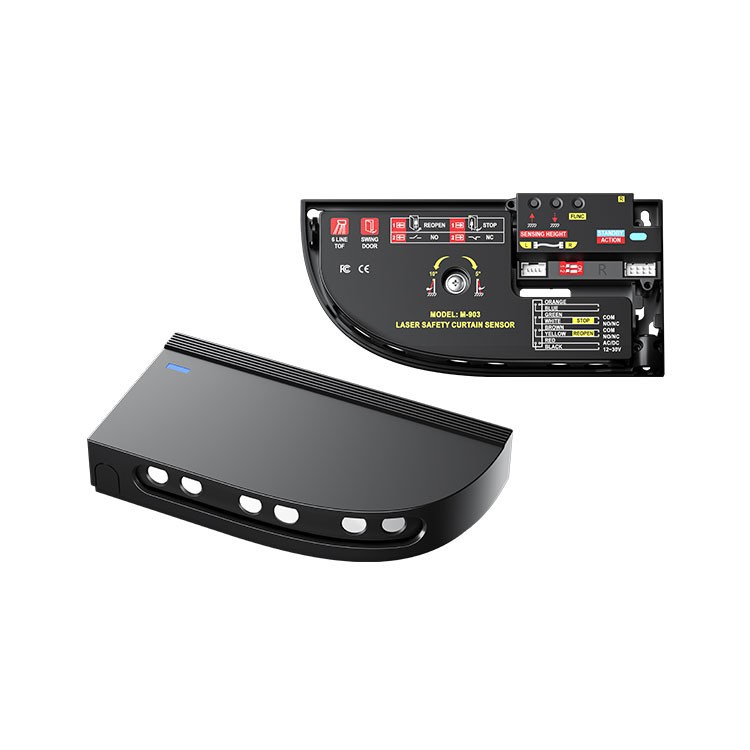

Safescan Safety Sensor for Automatic Swing Door | CANBO M-903
Products Functions
Laser scanning: Utilizing a light curtain composed of six laser beams and employing Time-of-Flight (ToF) technology, this system detects whether any persons or objects are approaching an automatic swing door while it is in operation.
Safe operation: If an obstruction is detected while the automatic swing door is closing, the door will reopen to prevent pinching injuries, thereby ensuring the safe and smooth operation of the automatic door system. Complies with international safety standard EN16005.
It is also particularly suitable for preventing hand pinching in the hinge areas of automatic swing doors.
Technical Parameters
| Color: silver, black | Detection principle: Time of Flight (TOF) |
| Door Types: Single door, double door, left-open, right-open | Light medium: 890nm infrared laser |
| Scanning height adjustment: by Function key, with 8 levels | Numbers of laser: 6-line |
| Working mode set: normal mode, stable mode | Detection response time: 50ms |
| DIP switch: anti-pinch, anti-collision, Normally Open/Close | Detection area diameter: Each 100mm light spot(Height=2.8 m) |
| LED indicator: sensor status, standby BLUE, detection RED | Detection range: Minimum 300mm away from the ground |
| Max installation height: 3.5 m@2% reflectivity, 5.5 m@10% reflectivity | Working voltage: AC/DC 12-30V |
| Detection angle: 5°-10° adjustable | Standby current: 45mA, Action current: 85mA (DC 12V supply) |
| Dimension: 153(L)x77(W)x30(H) mm | Signal output: Relay NO or NC |
Applications
1. Commercial Settings: Shopping malls, retail stores, hotels, office buildings, etc.
Characterized by high foot traffic and frequent pedestrian movement at entrances and exits, these environments require safety measures to prevent impact or pinching injuries caused by the automatic doors closing. Furthermore, these systems help prevent children who linger in the doorway from getting their fingers caught.
2. Industrial Settings: Logistics warehouses, cleanrooms, etc.
With the frequent movement of logistics vehicles and personnel, anti-pinch sensors ensure safe passage through entrances and exits.
3. Residential Settings: High-end apartments, private villas, garages, nursing homes, etc.
In these residential environments, where people frequently move through entryways, there are particularly high safety requirements regarding the anti-pinch protection of automatic doors.
Aftersales
- 24-Hour Technical Response
- Remote Video Installation Guidance
- Parameter Adjustment Guidance
- 1-Year Warranty
- Accessory Replacement
Upon request, we can provide recommendations for complementary products for automatic door systems.
