Outdoor Laser Safety Sensor For Gate System

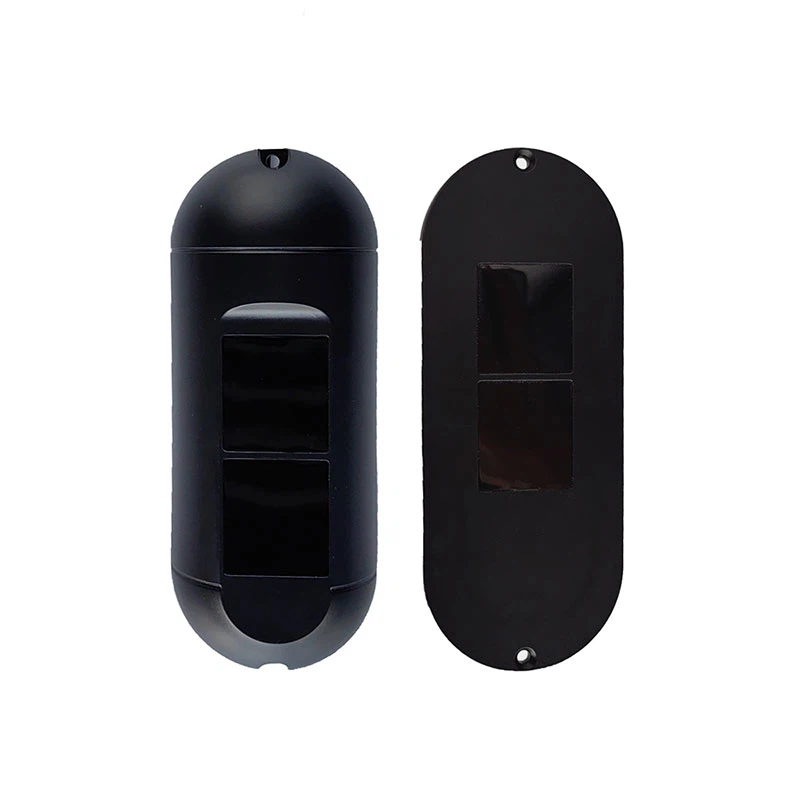

CANBO   M-901  Outdoor Laser Safety Sensor For Gate System





Our laser safety sensor is application about Time-Of-Flight principle technology in the automatic door safety field. CANBO M-901 Laser Safety Sensor, it is equipped with 890nm IR laser and Time-Of-Flight(ToF) principle, the transmitting chamber and receiving chamber integrated in one sensor, used for automatic door system through distance measurement of the required time to detect whether there is a human body or object in the detection range, matched with the automatic door opener, to ensure pedestrian and traffic safety.





It is particularly well-suited for use with gate and fence systems, car park barriers, and other high-risk areas where safety must be a top priority.

The device can be easily installed on the side of gates or fences, providing an additional layer of safety and security for personnel and property. In addition, the device has a flexible range of detection distances, which can be easily adjusted to suit specific needs. Like as detection distance adjustment, and rainproof adjustment. The former is detection distance setting through wave your hand at a certain distance what you need in standby state. The latter, it is special setting specilized for rainy day, open the rain proof mode to reduce interference.





• High-Precision Volumetric Detection: ToF sensors create a precise, three-dimensional detection zone. This allows the system to accurately identify the presence, position, and size of any person or object within the door's path, including small children, pets, or baggage.
• Enhanced Reliability and Reduced False Triggers: ToF technology measures distance directly, making it immune to environmental factors that can compromise other sensors, thereby significantly reducing the likelihood of false activations or failures.
• Intelligent Motion and Presence Analysis: Advanced ToF systems can analyze the direction of movement and differentiate between approaching traffic, departing traffic, and static individuals lingering near the doorway. This enables the door control system to make more intelligent decisions.
• Superior Safety and Anti-Pinch Functionality: During the closing cycle, a ToF sensor continuously scans the entire threshold area at high speed. If any object or person enters this monitored space, the sensor provides immediate feedback to the door operator, causing it to instantly stop or reverse. This proactive, comprehensive monitoring provides a robust and reliable anti-pinch safety mechanism.





Model	901	227L	220L
Detection principle:	Time-of-Flight technology(TOF)
Light medium:	890nm infrared laser
Laser category:	Class Ⅰ eye-safe laser
Detection diameter:	100mm light spots(2.8meters height)
Detection response time:	≤50m		normal mode 20ms, stable mode 100ms
Detection range:	0.8-10 meters	away from the ground large than 20CM
Detection angle:		0-25° adjustable	±4° adjustable when exposed installation
Installation method	Side installation Exposed& Embedded installation	Top installation	Top installation,Exposed & embedded installation
Installation height (max):		5m(fixed position), 3.5m(moving door leaf)
Working temperature:	-20℃~60℃
Working voltage:	AC/DC 12-30V
Standby current:	52mA(12V power)	50mA(12V power)
Action current:	74mA(12V power)	90mA(12V power)
Signal output:	Relay NO or NC
Trigger mode:	Moving or stationary
LED indicator:	Standby: BLUE, detection: RED
Shell material:	ABS, PC	Aluminum alloy, ABS, PC	ABS, PC
Mainly application	Road gate, sliding door, garage door	Swing door	Revolving door











Symbol	Cause	Method
Indicator light don't work	Power is not connected	Check the power supply and wiring
Indicator light is normal, but door can't be opened or opposite state	NO/NC signal are connected incorrectly	Reconnect the signal cable correctly
Power on and after learning background, RED indicator is always on	Set the sensing distance, and for than current distance	Cancel the sensing distance setting
Sensing distance is too close	Inductive distance cutting has been set	Reset the sensing distance cutting





Q: What is TOF (Time-of-Flight) Technology?



A: Time-of-Flight (ToF) is a sophisticated distance-sensing principle used to measure the distance between a sensor and an object. The methodology is based on calculating the time it takes for an emitted wave to travel to a target and for its reflection to return to the sensor.
The process can be summarized in four key steps:

Emission: The ToF sensor emits a modulated light signal, typically in the infrared spectrum.
Reflection: The signal propagates, strikes an object within its field of view, and is reflected back toward the sensor.
Detection: The sensor's receiver captures the reflected light.
Computation: By measuring the round-trip time of the light signal, the system precisely calculates the distance to the object, leveraging the constant speed of light (Distance = (Speed of Light × Time) / 2).

This technology provides direct, real-time depth information for each point in the scene, effectively creating a 3D depth map.
